A Complete Guide to Clear PETG Plastic Sheet: From Manufacturing to Applications
Plastic sheeting is a durable and cost-effective alternative to glass, wood and metals in everyday applications ranging from construction, manufacturing and agriculture, to packaging and healthcare. Differing from plastic film by its thickness, strength and structural integrity, it can be produced from a variety of plastics, optioned in different colours and surface finishes and machined to different shapes to meet specific needs.
While dozens of plastics are used to manufacture plastic sheet, if you need unmatched clarity, chemical resistance and weatherproofing and a viable alternative to glass, consider clear PETG sheet. Based on PET or polyethylene terephthalate used in everyday items such as water bottles and food containers, PETG is a synthetic thermoplastic polyester, with glycol added in the molecular to boost favourable properties.
Unlike PET which is prone to crystallizing (and turning opaque) when subjected to heat, PETG is better suited to higher temperatures and has higher strength and durability. This lends it more versatility, especially when optioned in thicker plastic sheets and panels.
How Is PET-G Sheet Made?

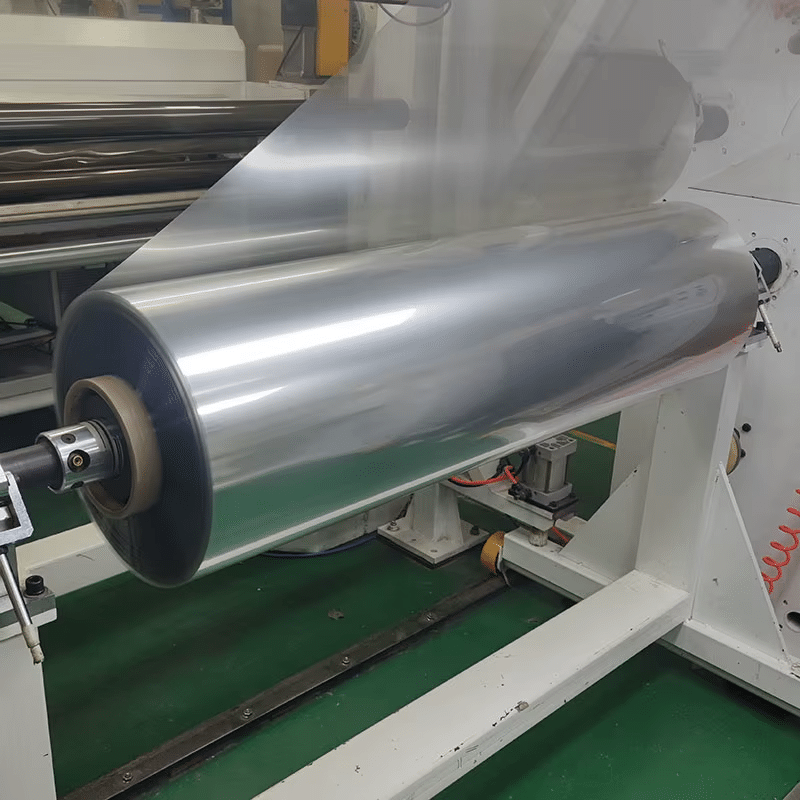

PETG is made by adding a glycol component, such as cyclohexane dimethanol to PET to lower melting temperatures required for processing into sheets. Solid PETG resin is plasticised and melted in an extruder after being dried an extruded into a uniform membrane.
This is then quenched and passed through a cooling roller. The stretched membrane is further cooled, stretched and shaped and ready for processing. The sheet can be enhanced with UV protective layers in post-processing to prevent yellowing, and thermoformed, sawed and drilled to assume the desired finish.
Key Properties and Advantages
The addition of glycol builds on the already favourable properties of regular PET (high clarity, low weight, easy formability, recyclability and food safety approval), to prevent crystallisation at higher temperatures. PET-G sheet retains its clarity and thermal stability up to 90 degrees Celsius, compared to 60 degrees in PET for improved heat resistance in everyday settings and applications. Glycol modification additionally makes PETG more durable and impact-resistant, with sheeting less prone to cracking.
A key benefit is the higher resistance to common chemicals, specifically solvents. preventing swelling and dissolving and ensuring widespread use in areas like the food industry. Moreover, the easy formability and workability of PETG sheet (such as heat-bending, pressure-forming and machining) ensures a variety of shapes and finishes. And if you’ve outgrown clear PETG sheet and need more variety in items like retail displays. cosmetic packaging or furniture, consider how easily the material supports colour blending and plasma treatment, for sheeting in a wide variety of colours and good print adhesion.
Lastly, choose PETG sheeting for the low production costs, recyclability, low weight, non-toxicity and general versatility across a wide scope of applications and industries.
PETG Sheet Grades and Types
The properties and appearance of PETG sheet can be modified for specific uses. Go with clear PETG if transparency and visibility are the main priorities. Or choose opaque, coloured or textured types for different aesthetic and functional purposes. By infusing additives in the raw material preparation phase, the sheet can also assume desired properties. UV-stabilised sheet is suitable for outdoor applications, food-compliant types are common in packaging, and fire-retardants are added for improved fire ratings, with the material difficult to ignite and self-extinguishing. Surfactants and carbon nanotubes are other additives for improved anti-static performance, while recycled PETG is an eco-conscious choice.
Sheeting can additionally be sourced in standard grades, sizes and thickness for general use, be pre-cut and machined to specified dimensions (for processing or assembly), or thermoformed into the desired shapes.
Common Uses
PETG is a durable, impact and heat-resistant alternative to glass and other plastic sheeting, seen in numerous commercial and industrial applications. Choose the sheeting for its low weight, transparency, formability and colour blending properties in signage and retail displays. Panels made of PETG are especially widespread in point-of-purchase displays in retail environments. The fact that it is easy to print raises its usage in similar settings, including signs, decorative boards and display cases.
Make good use of the high impact resistance for specialised products such as machine guards in manufacturing facilities, or as barriers, fences, bus shelters and protective screens in applications where security and protection are paramount. And with excellent chemical and heat resistance, PETG sheet is readily seen in medical applications, including pharmaceutical and cosmetics packaging, medical trays, implants and prosthetics. In the same vein, MHRA approval (with its non-toxicity and ability to withstand sterilization) additionally means PET-G plastic sheet is safely used for bottles, food trays, containers and clamshell packaging.
Compared to Glass
At half the weight, double the impact resistance and none of the brittleness of glass, PETG sheet is for most uses the better choice. It won’t snap or shatter, is much safer in everyday usage, and being lighter, easier to transport and move. Both materials are food safe, though glass is non-porous, and won’t deform at higher temperatures.
In terms of resistance to common chemicals, glass is better against harsh acids and alkalis, but also susceptible to corroding from hydrofluoric and phosphoric acids. PETG sheet, on the other hand, displays balanced performance against most acids, bases, alcohols and solvents, though will degrade when exposed to esters, ethers and ketones.
A key difference is the formability of PETG sheet. The material is flexible enough to undergo milling, laser and thread cutting, punching, cold bending, and drilling, meaning more flexibility in end products.
Compared to Acrylic, Polycarbonate and PVC Sheeting
A good understanding of other thermoplastics means choosing the right material for the project. PETG is often comparable to acrylic, polycarbonate and PVC sheeting, though subtle difference leads to different uses. Acrylic is cheaper, slightly more transparent than clear PETG sheet, and can be optioned in a high-gloss finish. It’s also marginally better for scratch resistance, and handles UV radiation without additives, lowering processing and production costs. This is where the benefits end. PETG is substantially stronger (over 5 times), more flexible and easier to machine in complex shapes. It’s also less brittle, so won’t deform or shatter under impact.
Compared to polycarbonate sheeting, PETG tops shopping lists for lower cost, higher performance against chemicals, and better food-rating compliance. Though polycarbonate is tougher (uses include bulletproof glass) and has better heat resistance in high stress environments (skylights, kitchen partitions, roofing), PETG is easier to shape, has adequate strength for common uses, and better UV resistance. If outright strength is a requirement, choose polycarbonate. For all other uses, PETG is the more sensible choice.
Lastly, when compared to PVC sheet, PETG comes on top for its higher clarity, considerably higher overall strength and impact resistance, and the fact that it’s much easier (and cheaper) to recycle. It’s also more stable at higher temperatures. While somewhat cheaper, PVC sheet has better water resistance, fares better against alkalis, but can pose safety and environmental concerns due to the high chlorine content.
