Most homeowners hear the term roof pitch and assume it’s something only contractors need to know. It’s not.
Understanding standard roof pitch can help you read building plans, talk to roofers without confusion, and make smarter decisions when repairs or replacements come up. And they always come up eventually.
So what exactly is roof pitch? How is it measured? And what counts as the average roof pitch for most homes?
This guide breaks all of that down in plain terms. No construction background needed. Just clear, straightforward information to help you understand your roof a little better.
What is Roof Pitch?
Roof pitch describes how steep a roof is. It is written as a ratio of rise to run, which basically means how much the roof rises vertically for every 12 inches it travels horizontally.
For example, a 6:12 roof pitch means the roof goes up 6 inches for every 12 inches of horizontal distance. That ratio tells contractors, inspectors, and homeowners exactly how angled a roof is without any guesswork.
The reason 12 inches is always used as the base comes down to consistency. In US construction, the run is standardized at 12 inches, which equals one foot.
Residential roofs typically use a pitch between 4:12 and 9:12, which supports proper drainage and structural stability.
Climate also plays a role, as snowy regions often use steeper slopes to shed snow, while warmer areas may use lower pitches.
Why Roof Pitch Matters
Roof pitch affects more than the shape of your roof. It plays a major role in how the roof handles weather, which materials can be installed, and how much maintenance it may need over time.
- Water Drainage: A steeper roof allows rainwater to move off the surface quickly. Faster drainage reduces the chances of standing water, which can weaken roofing materials and eventually cause leaks.
- Snow Load: Roofs with a higher pitch allow snow to slide off more easily. Lower slope roofs tend to hold snow longer, which adds extra weight to the structure during winter.
- Roofing Material Compatibility: Certain roofing materials require a minimum roof pitch to perform properly. For example, asphalt shingles usually require at least a 2:12 pitch to prevent water from pooling beneath the shingles.
- Installation Cost: Steeper roofs are more difficult to work on and often require additional safety equipment. This can increase labor costs during installation, repairs, or full roof replacement.
- Maintenance and Longevity: A roof with the correct pitch for its climate and materials typically experiences fewer issues over time. Proper pitch helps roofing systems last longer with less frequent repairs.
Roof Pitch vs. Roof Slope
Roof pitch and roof slope get used interchangeably, but they are not exactly the same thing. Each one describes roof steepness in a different format depending on the context.
| Term | How It Is Expressed | Example | Common Use |
|---|---|---|---|
| Roof Pitch | Rise over a 12-inch run | 6:12 | Residential construction |
| Roof Slope | Angle measurement | 26.6° | Engineering calculations |
| Roof Grade | Percentage of incline | 50% | Commercial or civil work |
So if you are reading a standard homebuilding plan or talking to a roofer, pitch is almost always the format they use.
How Roof Pitch is Measured
Measuring roof pitch is something most homeowners can handle on their own. You do not need any specialized equipment either. A level and a tape measure are all it takes to get a reliable reading.

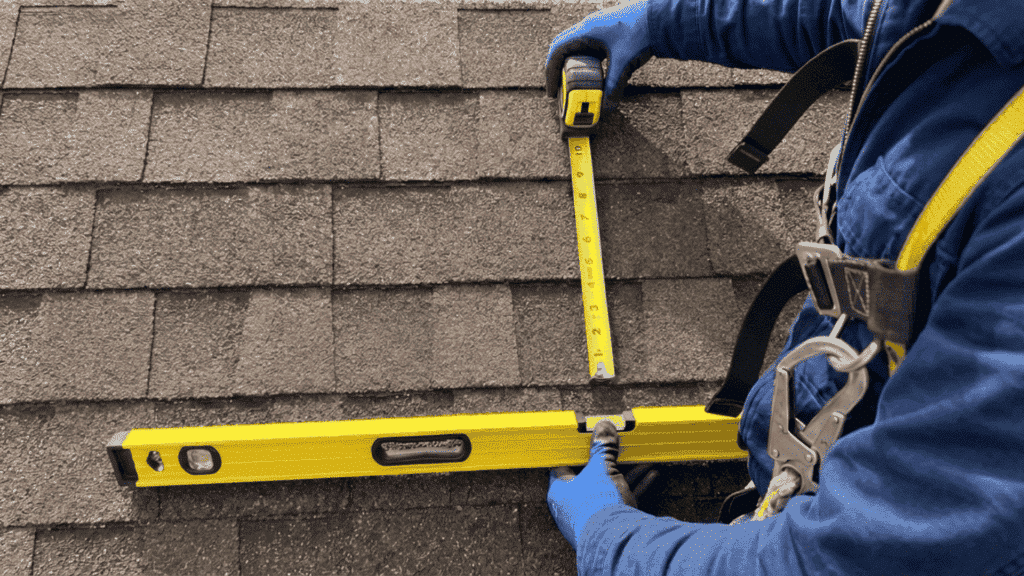

Measuring From the Roof Surface
- Use a level that is at least 12 inches long so you can measure the pitch accurately.
- Place the level flat along the roof slope and make sure the bubble sits centered.
- Measure straight down from the 12-inch mark to the roof surface.
- The vertical distance you measure is the rise.
- For example, if the rise measures 5 inches, the roof pitch is 5:12.
Measuring From Inside the Attic
- Locate an exposed rafter inside the attic.
- Hold the level flat against the bottom edge of the rafter.
- Measure straight up from the 12-inch mark to the rafter above.
- That measurement gives the rise over a 12-inch run.
- When done carefully, this method provides results just as accurate as measuring from the roof surface
Using Digital Tools and Calculators
- Smartphone apps can measure roof slope using built-in sensors.
- Place the phone directly on the roof surface or along a rafter to read the angle.
- Online roof pitch calculators help convert measurements quickly.
- Enter your rise and run values to calculate the pitch ratio.
- These tools make measuring roof pitch faster and easier.
Converting Roof Pitch to Degrees
- Some architects and engineers prefer working with angles instead of pitch ratios.
- A 6:12 roof pitch equals roughly 26.6 degrees.
- The conversion uses the arctangent of rise divided by run.
- Most people do not need to calculate this manually.
- Free roof pitch calculators online can convert pitch to degrees instantly
Low Slope vs. Steep Roof Pitch
Roof pitches outside the typical residential range fall into two distinct categories: low-slope and steep roofs. Each comes with its own material requirements, drainage behavior, and cost considerations.
| Feature | Low Slope (Below 4:12) | Steep Roof (Above 9:12) |
|---|---|---|
| Common Use | Modern homes, garages, and commercial buildings | Traditional homes, snow-heavy regions |
| Materials | Membrane roofing, TPO | Shingles, tile, metal |
| Water Drainage | Slower, material must be rated for low slope | Faster, water and snow shed quickly |
| Snow Shedding | Snow may accumulate, adding structural weight | Snow slides off, reducing the load on the structure |
| Labor Cost | Lower, less equipment needed | Higher requires more safety equipment and time |
| Best For | Areas with mild weather and minimal snowfall | Colder regions where snow buildup is a concern |
Common Roof Pitch Examples
Several pitch ratios appear consistently across residential construction. These examples give you a clearer sense of how different slopes look and where they are typically used.
1. 4:12 Roof Pitch
A 4:12 roof pitch is considered a moderate slope. It is a popular choice for ranch-style homes because it provides just enough angle to drain water effectively without making the roof too steep to work on.
Installation and maintenance are both relatively straightforward at this pitch.
It is one of the more accessible options for contractors, which often keeps project costs lower compared to steeper designs.
2. 6:12 Roof Pitch
The 6:12 roof pitch is one of the most commonly used pitches in residential construction across the US.
It sits in a practical middle ground that works well for a wide range of home styles.
Water drains efficiently at this angle, and it pairs reliably with popular roofing materials such as asphalt shingles and metal panels. It is a dependable choice that balances performance with construction practicality.
3. 8:12 Roof Pitch
An 8:12 roof pitch creates a noticeably steeper roofline, adding a more traditional, architectural look to a home.
It is commonly found in regions with heavier snowfall, since the steeper angle helps snow slide off more easily.
The steeper design does require more material and a bit more labor during installation. That said, it performs well in demanding weather conditions and holds up reliably over time.
4. 12:12 Roof Pitch
A 12:12 roof pitch creates a perfect 45-degree angle, giving a home a sharp, dramatic roofline.
It is most often seen in A-frame houses and buildings designed with steep architectural profiles.
At this pitch, snow and rain move off the roof quickly and efficiently. However, installation at this angle requires additional safety measures and more labor, so it typically adds to the project cost.
Conclusion
Roof pitch may seem like a small technical detail, but it has a real impact on how a roof performs over time.
Knowing how roof pitch works makes it easier to understand building plans, evaluate roofing estimates, and communicate clearly with contractors.
Most residential homes fall within the standard roof pitch range of 4:12 to 9:12, with 6:12 often considered the average roof pitch used in many parts of the United States.
With this knowledge, homeowners can make more informed decisions when building, repairing, or replacing a roof.
